● Extinguisher cylinders have a phosphate under treatment to resist corrosion.
● External Epoxy Paint adds extra protection to with stand extreme temperatures.
● 100% cylinders must pass the hydraulic pressure test, without any leakage.
● Valve material: Brass
● Agent: 40% ABC dry powder(Monoammonium Phosphate) is capable of fighting class A. B. C & E Fires.
● The products are always exported to South America with stamp of
XXKG PT 14KG/cm2 PP 35KG/cm2
Month/Year xxxxxx (Serial number).

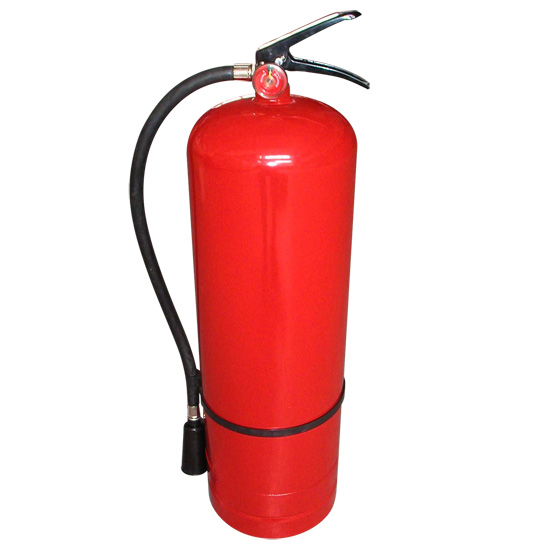

| Model: | FP-JS-03-09 | ![]() |
| High-Approx(mm): | 630 | |
| Shell-Approx Dia(mm): | 180 | |
| Cylinder Min Wall-thickness(mm): | 1.3mm | |
| Volume: | 14.6L | |
| Material: | DC01 | |
| Weight Full-Approx(kg): | 16.6 | |
| Fire rate: | 34A183BC | |
| CTN size: | 19X19X72.5CM/1PC | |
| Max working Pressure/Test Pressure(Bar): | 16/25 |
